TeeJet Technologies

GPS Guidance

TeeJet Spray Equipment products typically used for in field guidance via the use of GPS navigation. These TeeJet products range in their feature sets and navigation accuracy.

Assisted Steering Products

Products used for on board assisted steering utilizing GPS navigation. They range in their feature sets and navigation accuracy.

Boom Section Control

Products typically used to enhance the performance of our lightbar guidance systems. These products range from automatic swath management systems to tilt compensation products.

Application Controllers

Control systems designed for precise application of granular fertilizers.

GPS Speed Sensors

The GPS Speed Sensor uses a GPS receiver to measure true ground speed, then delivers a frequency signal compatible with the radar speed signal input on most controls and monitors.

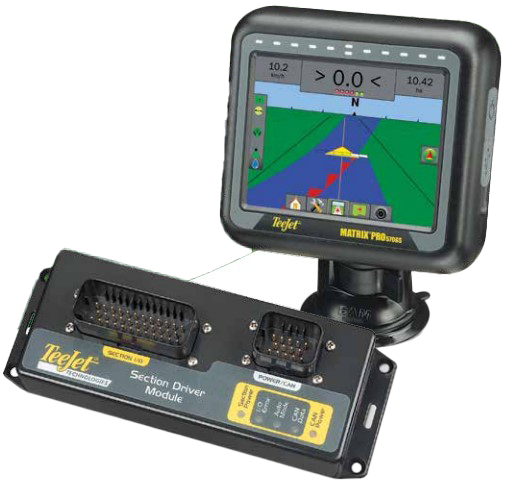

TeeJet BoomPilot

Automatic Boom Section Control for Your GPS Guidance System

TeeJet

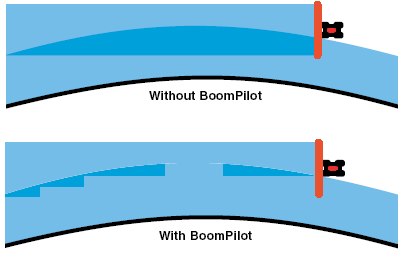

is a quick and easy addition to almost any lightbar guidance system. Leverage your GPS guidance investment by adding BoomPilot and take advantage of the latest in sprayer automation. With the GPS data provided by your existing guidance system, BoomPilot will automatically switch off sprayer boom sections when they enter a previously applied area. BoomPilot records the GPS location of the applied areas in your field. When a section of your sprayer boom overlaps one of these areas, that section is switched off automatically, and then switched back on when it re-enters an unapplied area. This automation is useful on point rows, on curved rows, and even at the end of each pass. Reduced overlap saves on material inputs, fuel and time, and operator stress.

• Connects to existing GPS receivers or guidance systems, leveraging an investment you have already made

• Simple, intuitive operation with icon based setup screens

• Automatic boom section control for up to 15 boom sections

• Simple T cables connect with most common controllers to maintain accurate application rates and area measurement

• Easily adjusted overlap percentage and delay settings

• Manual override function

• Save money and time by using GPS to automatically control boom section off-on status

TeeJet Assisted Steering

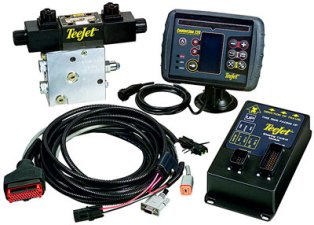

TeeJet Spray Equipment FieldPilot Assisted Steering System

TeeJet Spray Equipment FieldPilot is an innovative GPS guidance device that provides effective results in an easy-to-use package at an unbeatable price.

Guidance information is provided on a bright, clear graphical display and also on a built-in lightbar. The system will provide manual or automated guidance in parallel (straight) and curved AB patterns.

TeeJet FieldPilot connects to the hydraulic power steering system to provide reliable and convenient control. This method of connection keeps the cab free of brackets and motors that may interfere with normal steering.

During operation, the first pass in a field is driven manually. Subsequent passes are conducted by lining up the vehicle near the desired swath and engaging assisted steering.

The vehicle will automatically maintain its precise location on the desired track. The operator can easily disengage the steering system at the row end and make the headland turn manually.

Features:

• Low-cost assisted steering
• Simple installation and operation
• Hydraulic steering interface for optimum performance
• Parallel (straight) and curved A-B guidance
• Tilt compensation and Gyro-stabilization included standard
• Remote engage/disengage switch
• Custom installation kits available to fit most common vehicles

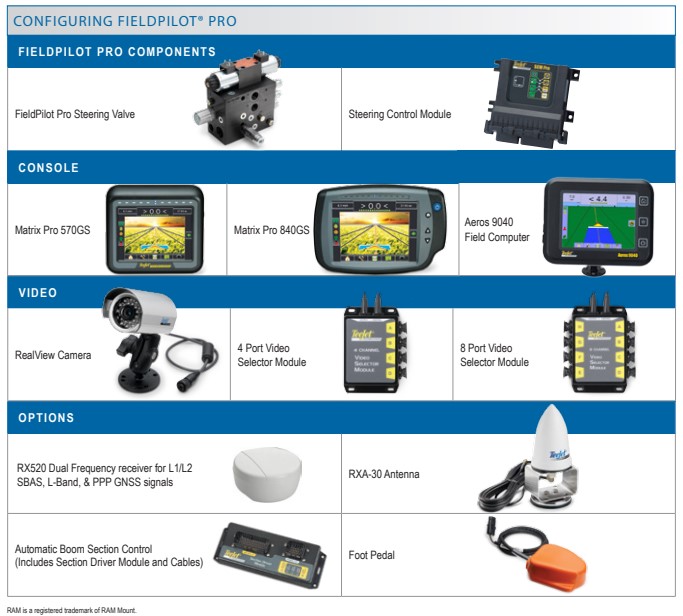

FieldPilot Pro connects directly into your equipment’s steering system for the best possible performance.

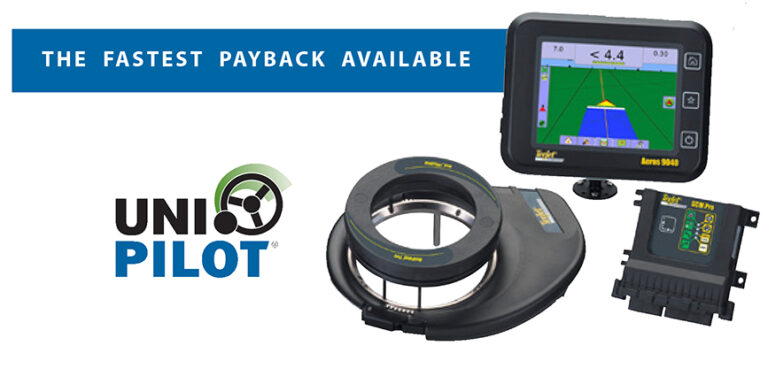

UniPilot® Pro

Assisted Steering, Like You’ve Never Seen Before.

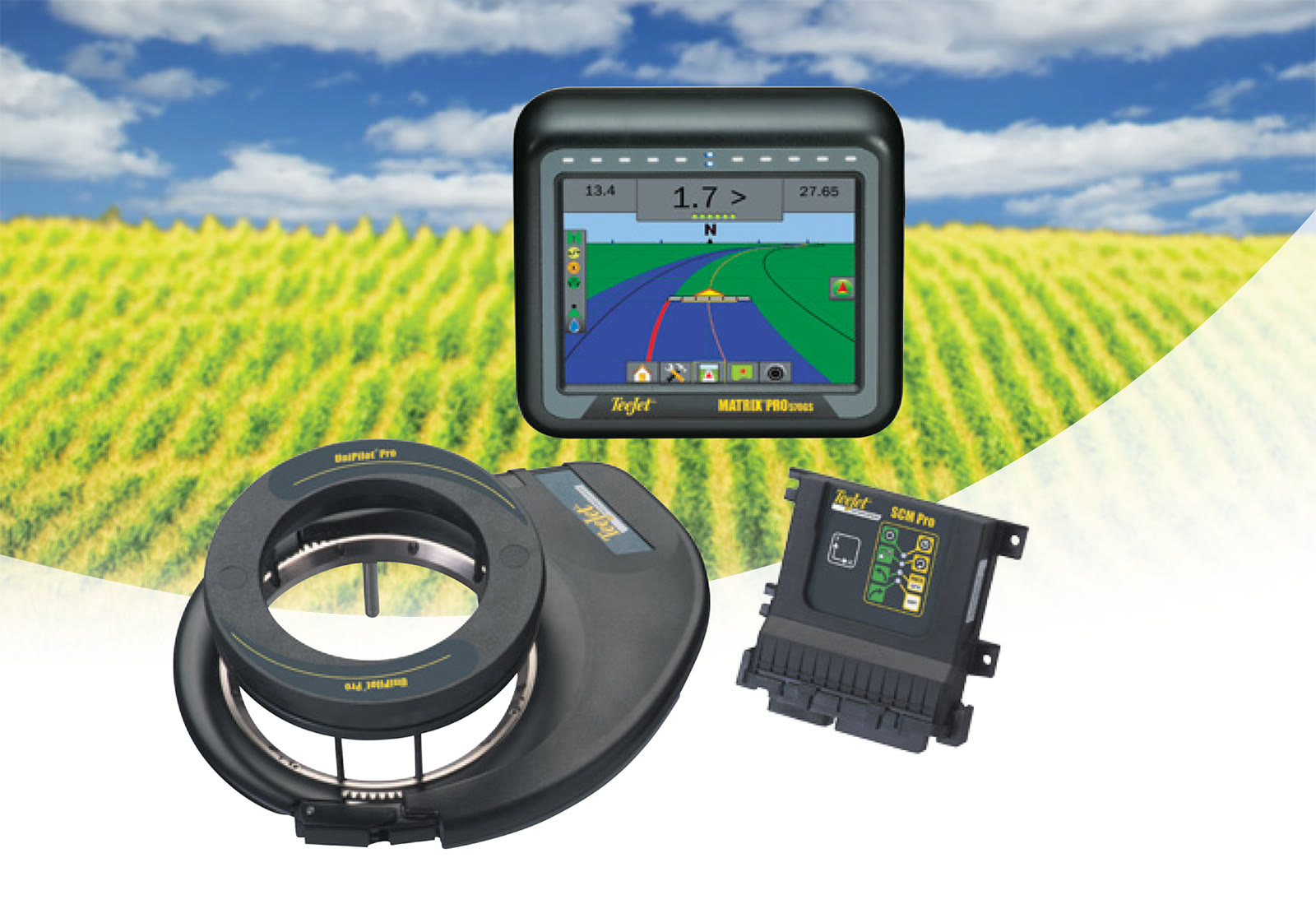

UniPilot Pro delivers assisted steering in a package that lets you get the most from your teeJet guidance system.

Compatible with a huge range of equipment uniPilot Pro makes autosteer technology accessible to nearly every operator.

The amazing online performance and quiet, convenient operation will leave you relaxed and smiling.

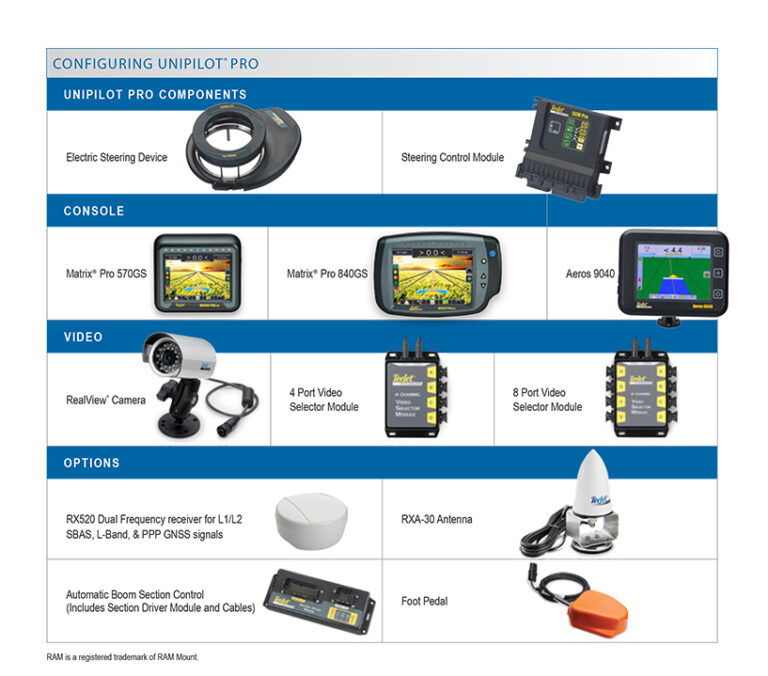

Matrix Pro console is available in two sizes: Matrix Pro 570GS (5.7′′ screen) and Matrix Pro 840GS (8.4′′ screen)

up to eight cameras can be used with the Matrix system

optional Automatic Boom Section Control for up to 15 boom sections

optional RXA-30 high-sensitivity antenna

optional RX520 high-precision GNSS receiver for+/- 2-4”/5-10 cm pass-to-pass accuracy

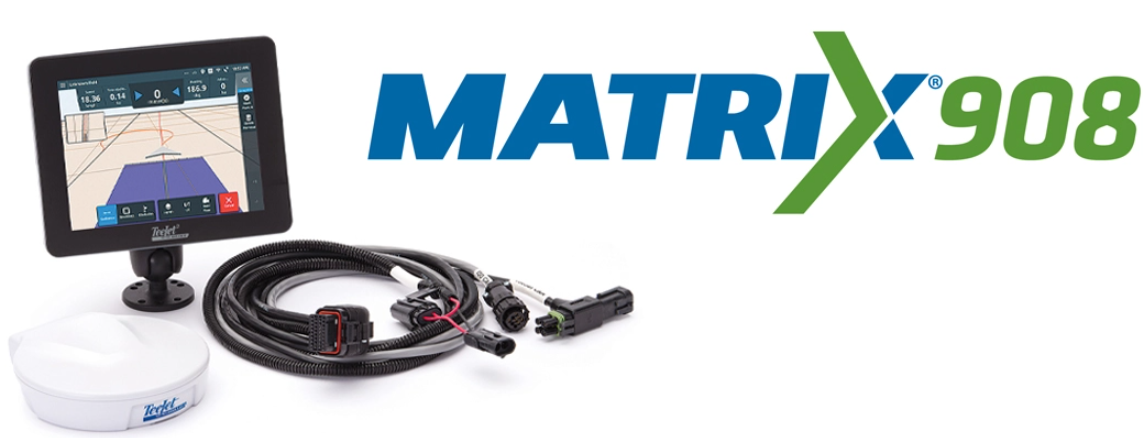

Compatible with the Matrix 908
