Dickey-john Electronics

Powerful DICKEY-john Moisture Testing machines deliver accurate, reliable readings quickly. Choose the ideal products and accessories for your business.

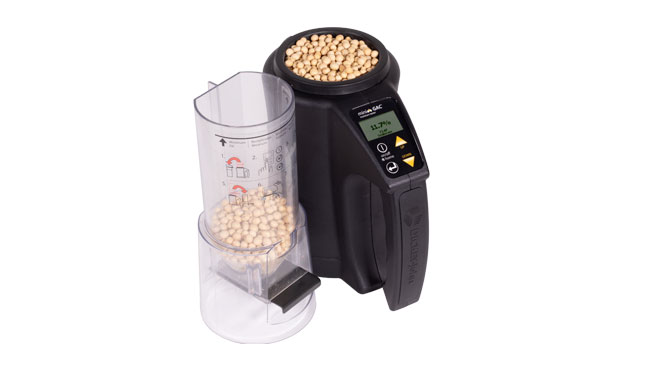

MiniGac

Mini GAC

With the mini GAC you can measure moisture: Fast, Easy, Accurate

• Moisture Range: 5-45%
• Grain Temperature: 32-122°F
• Measures over 450 types of grain and product (No Test Weight Measurement) Package for the mini GAC includes: mini GAC, grain loader, quick-start guide, one-year manufacturer’s warranty card.

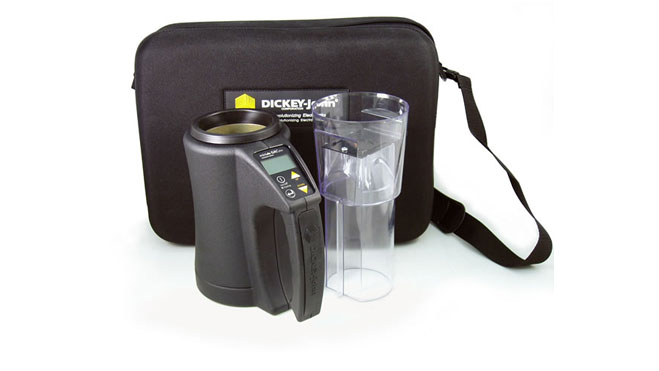

Mini Gac Plus

Mini GAC Plus

• Moisture Range: 5-45%
• Grain Temperature: 32-122°F
• Measures over 450 grains and products
• Test Weight Measurement Package for the mini GAC plus includes: mini GAC plus, grain loader, carrying case, operator’s manual, 9-volt battery, and one year manufacturer’s warranty card

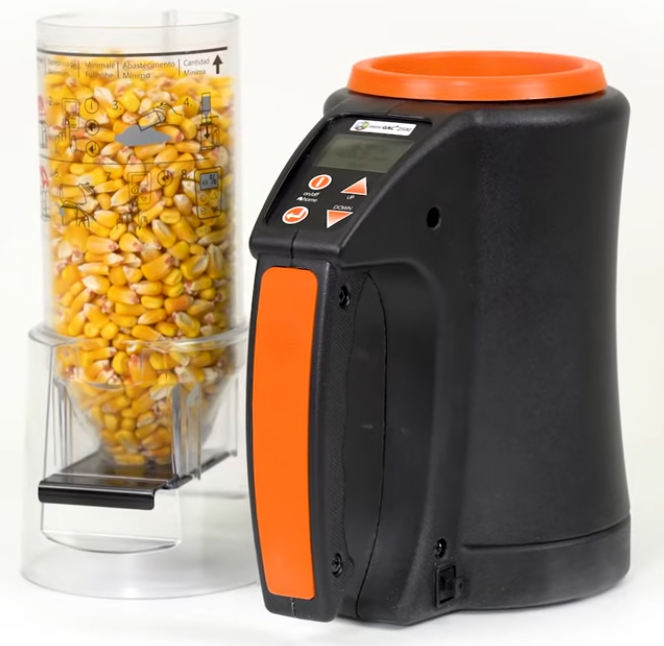

Mini Gac 2500

Mini GAC 2500

• Handheld Moisture Tester with 149 mHz UGMA technology to provide elevator like results
• Moisture Range: 5-45%
• Grain Temperature: 32-122°F (0-150°F on certain grain types)
• Measures over 450 grains and products
• Test Weight Measurement Package for the mini GAC 2500 includes: mini GAC 2500, grain loader, carrying case, operator’s manual, 9-volt battery, and one year manufacturer’s warranty card.

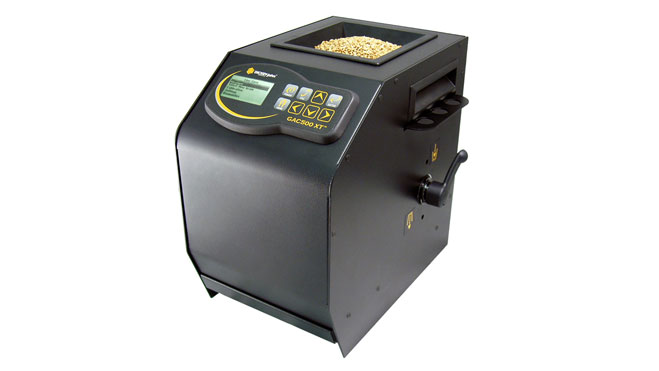

GAC500XT

GAC500 XT

• Moisture Range: 5-45%
• Stores up to 16 calibrations
• More than 450 calibrations available for download
• 110/220 volt, DC converter, or cigarette lighter power sources

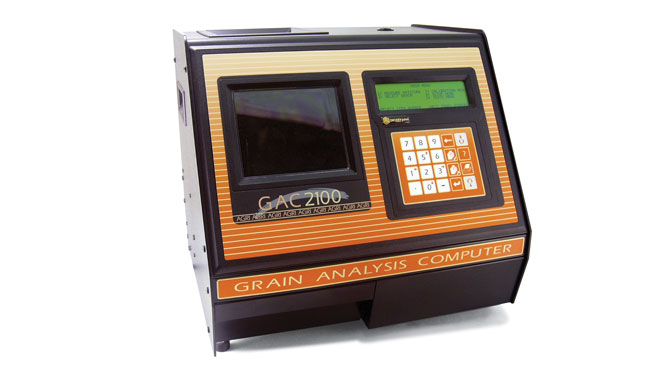

GAC2100 AGRI

• Moisture Range: 5-45%
• Grain Temperature: 32-104°F
• Test Weight Measurement
• Consistent moisture, temperature, and test weight results
• Use for cereals, oilseeds, grass seeds, vegetable seeds, beans, peanuts, almonds, walnuts, and other specialty crops

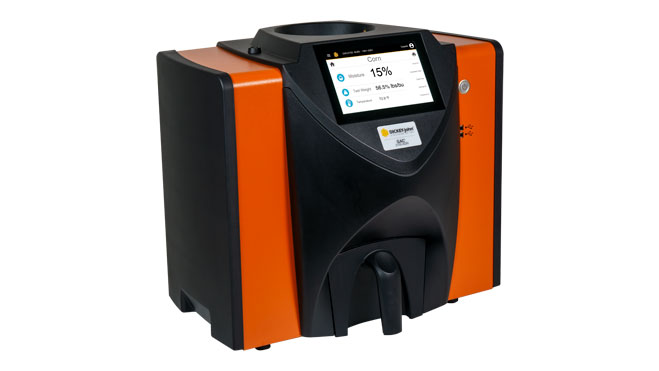

GAC2700 AGRI

• Moisture Range: 5-45%
• Grain Temperature: -4°F – +113°F
• Test Weight Measurement
• Provides precise results measuring grain moisture and test weight
• Large, bright color touchscreen that is user-friendly and easy to read
• Provides accurate measurements for frozen and hot grain
• Store up to 3,000 sample results that can be exported or printed at any time
• Hot corn calibration for testing right out of the dryer
• Fast sampling results without the need of charts or pre-weighing grain
• Multiple USB ports on back of the unit for software upgrades, USB devices, printer and peripherals
• Additional USB ports located on the front of unit for easy calibration imports, as well as keyboard and mouse plug-ins for inputing setup data

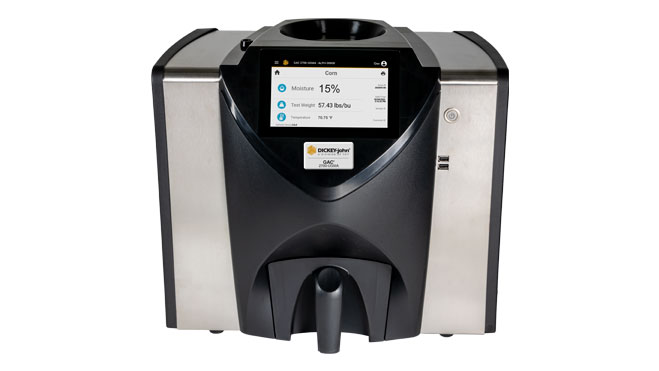

GAC2700 UGMA

• Moisture Range: 5-45%
• Grain Temperature: -4°F – +113°F
• Memory Storage for up to 3,000 measurements
• Multiple USB ports on the front and back of the unit for software upgrades, USB devices, printer and peripherals
• Field proven to work with all leading scale systems
• Utilizes the latest 149MHz technology to bring you NTEP certified results with faster analysis time.
• Equipped with NTEP calibrations for all grain types with custom calibrations available for specialty products such as walnuts and almonds, as well as non NTEP calibrations.
• Designed with a 7″ color touch screen, easy-to-use operating system and ergonomically designed sample drawer.
• Calibrations specifically developed for specialty crops such as peanuts, almonds, popcorn, carrot seed, and many more

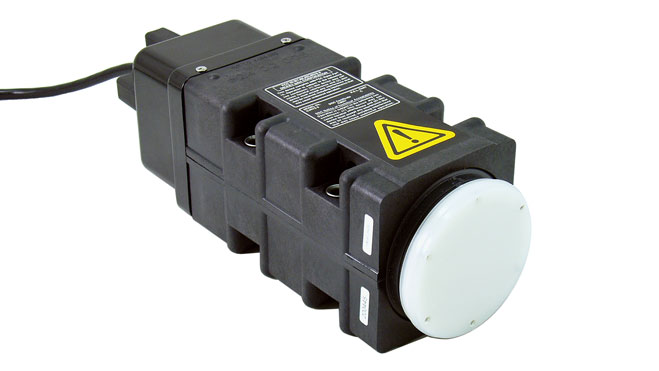

Radar II

• Easy to install
• Views actual ground surface for accurate speed measurement
• Can be mounted to look forward or backward from vehicle
• Velocity range 0.33-66 mph (0.53-96.6 km/h)
• Mounts at 35±5° angle and at least 24 in. (610 mm) height from target surface (mounts anywhere from 2 to 8 ft. high)
• Variety of factory output frequency settings available
• Sleek design, 4 x 4 x 12.25 in. (10 x 10 x 31.1 mm)
• Weighs 4.5 lbs. (2.05 kg)
• Achieves velocity errors of ±1-3% through in-field calibration
• Views ground surface for accurate ground speed detection
• Velocity errors of less than or equal to 1% from .3 – 44 mph (.53-70.8 km/h) after field calibration
• High impact, chemical and weather resistant plastic housing

Radar III

• Easy to install
• Weighs 1 lb.
• Dimensions: 4” x 3.4” x 3.1”
• High-tech planar array for the truest velocity measurement possible
• Views ground surface for accurate ground speed detection
• Velocity errors of less than or equal to 1-3% after in-field calibration
• Can be mounted to view forward or backward from vehicle

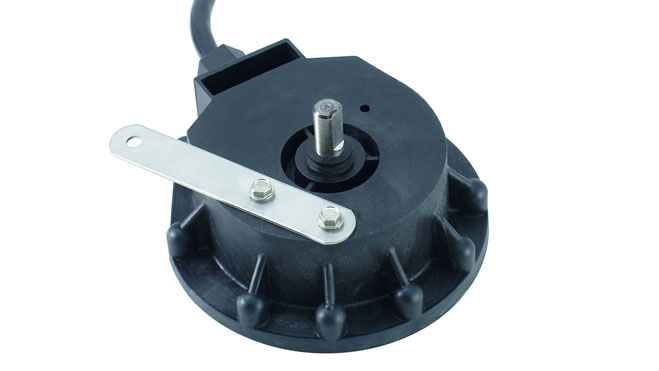

Application Granular Encoder Sensor

Granular Encoder

Part #: 464361500S1 (18″, 3 Pin WP)

Two model options:

• 180 pulse signals per revolution
• 360 pulses per revolution
