AS1260 / AS1260 XP Mechanical-drive sprayer
Engine
Cummins B6.7
Power
260 / 300 hp
Tank
1,200 gal
Boom
90–132 ft
Weight
21,200 lb
The largest capacity sprayers in the AS family, yet they weigh far less than the competition. Share the same 1,200-gallon tank, the same Mooresville-built chassis, the same cab. Choose the AS1260 for 260 horsepower of Cummins torque, or step up to the AS1260 XP for 300 HP when the hills are steeper and the days are longer.
Standard features
Boom System
01
Smarter Rack Designcushioned & stableImproved cushioning and stability absorb stress across rough terrain, smoother operation, reduced wear, lower long-term maintenance.Less wear · Smoother Operation
02
Breakaway Wingshandles field obstaclesWings flex on contact with trees, poles, fence lines, and equipment, then automatically return to position so you keep moving.Auto return · Keeps You Moving
03
Greaseless Bushingsdramatically less serviceEliminate 27 of 32 grease points across the rack and wings. Dramatically less daily service. More uptime. More acres.27/32 · Grease Points Cut
04
Boom Recirculationprimed & uniformPrimes the boom before spraying for a uniform pattern. Eliminates product settling, auto mode detection, low-flow alert.Primed · Before You Spray
Performance
01
Mechanical Drivesince 1997No hydrostatic parasitic loss. Cummins B6.7 through a ZF Powershift transmission delivers 90% driveline efficiency, and best-in-class power-to-ground.90% · Driveline Efficiency
02
Hydrocone Cabfluid-elastic isolatorsAMC Mecanocaucho "Hydrocone" isolators absorb shock and chassis displacement, delivering a measurably smoother ride over rough ground.50% · Smoother Ride
03
Load-Sense Steeringvariable-displacement pumpA variable-displacement load-sense piston pump delivers the right hydraulic flow at every speed, reducing steering effort at headlands, hills, and tight corners.20% · Less Steering Effort
Cab & Comfort
01
Heated & Cooled Seatleather · operator-first cabHeated and cooled leather seat comes standard. Because the cab is where the season is really won, and every hour of comfort is an hour of accuracy.12hr+ · Cab Comfort
02
Forward Visibilityfront-engine architectureFront-engine, rear-boom layout means an unobstructed forward view down the row, and the boom stays out of the operator's sightline, every pass.360° · Row Visibility
03
Ergonomic ControlsBosch · Raven · ACTIAClimate control, intuitive joystick, common display, and proven Raven and ACTIA boom controllers. Built around the operator, not the engineer.All day · Operator-First
Tank & Plumbing
01
HDPE Product Tank1,200 gallonsHigh-density polyethylene product tank. Chemically resistant, contoured for balance, and built for decades of daily rinse cycles. Stainless steel available.1,200 gal · Capacity
02
100-Gallon Rinse Tankfresh-water cleanDedicated 100-gallon rinse tank for end-of-day cleanout and chemistry switches. Keeps the product tank ready for the next mix.100 gal · Rinse Capacity
03
Full Cleanout Accessplumbing built for serviceBoom recirculation works with individual nozzle and section control. 100% cleanout access through the plumbing, nothing trapped, nothing settled.100% · Cleanout Access
Ownership
01
Bumper-to-Bumper2-year warrantyTwo-year full warranty. Five-year limited. The strongest coverage in mechanical-drive sprayers, in writing, from the factory.2/5 yr · Bumper / Limited
02
Same-Day Parts95% fill rate95% same-day parts fill from Mooresville. When something's needed, it's on its way, not on backorder. Built for the season you're in.95% · Same-Day Fill
03
Built in Mooresville, INUSA · since 1997Designed and assembled by Equipment Technologies in Mooresville, Indiana. American-made, backed by the people who built it.USA · Made & Backed
Specifications
Figures are from the factory spec sheet. Full AS1260 / AS1260 XP page at etsprayers.com ↗
Chassis, Suspension & Tires
- Weight
- 21,200 lbsApproximate dry weight
- Axle Width
- 120″ fixedOr 120″–160″ hydraulic adjustable
- Transport W & H
- 144″ max
- Overall Length
- 290″ max
- Turning Radius
- 20′
- Wheel Base
- 15′
- Front / Rear Tires
- Michelin 380/80R38 · 380/90R46Standard
- Crop Clearance
- 50″With 18″ drop-box all-gear final drive

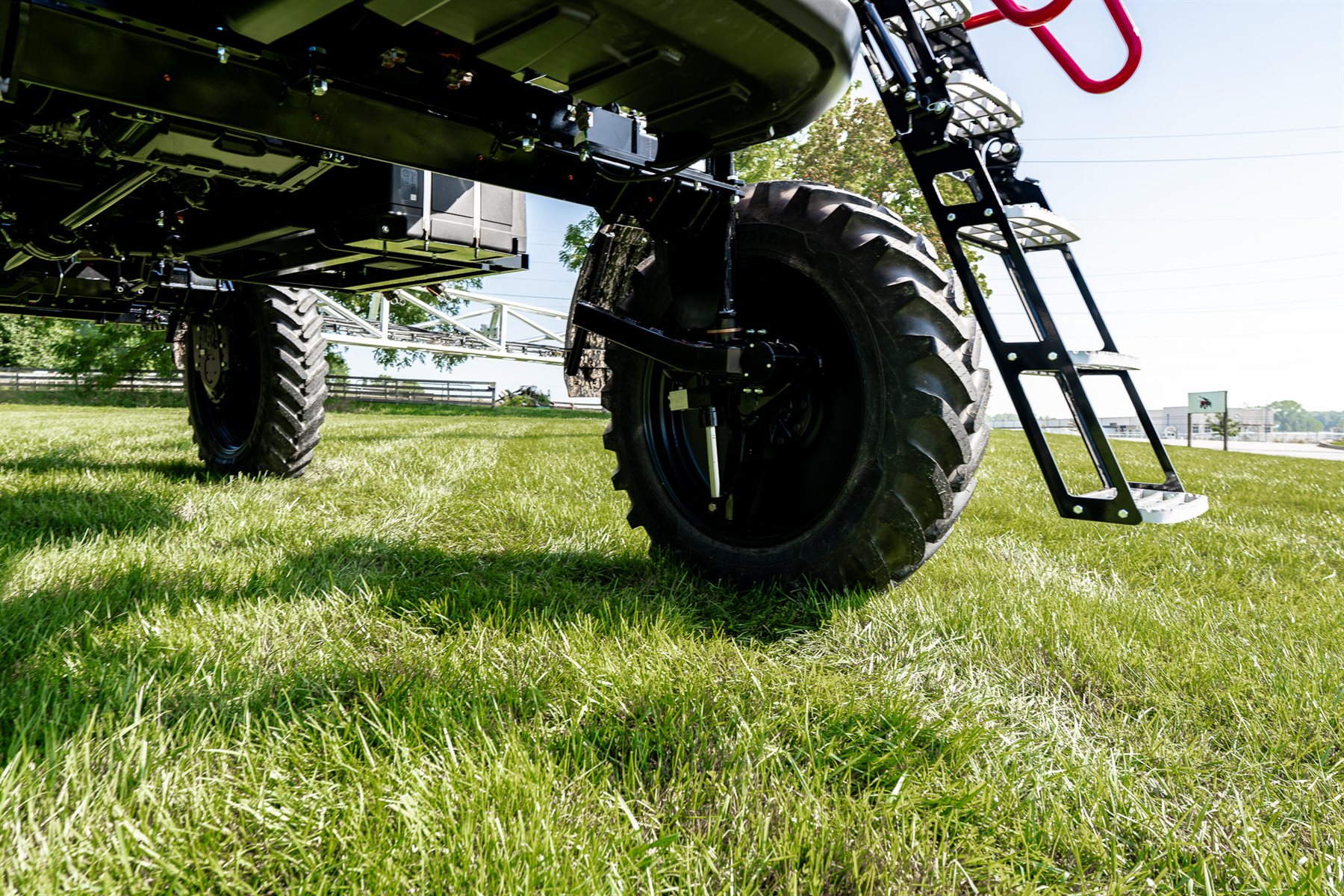

- Suspension
- Independent hydraulicPatented
- Brakes
- Internal wet discFully enclosed · self-adjusting
Engine & Drivetrain
- Engine
- Cummins B6.7Performance Series · Shared block, different rating
- Rated Horsepower
- 260 HP · 300 HPAS1260 = 260 HP rated · AS1260XP = 300 HP rated
- Transmission
- ZF Powershift6-speed with lock-up torque converter (up to 2× torque multiplication)
- PTG Ratio
- 11 · 12.7 HP / 1,000 lbsAS1260 / AS1260XP respectively, both best-in-class for large-capacity sprayers
- Driveline Efficiency
- 90%Mechanical drive, no hydrostatic parasitic loss
- Fuel Tank
- 90 gal
- DEF Tank
- 15 galDiesel exhaust fluid
Product & Spray System
- Tank Capacity
- 1,200 gallonsHDPE standard · Stainless steel upgrade available
- Rinse Tank
- 100 gal
- Booms
- 90′ · 100′ · 120′ · 132′Pommier aluminum
Cab & Coverage
- Cab
- Heated / Cooled LeatherHydrocone fluid-elastic active isolators
- Warranty
- 2-Year Bumper-to-Bumper5-year limited warranty
- Assembly
- Mooresville, INBuilt by Equipment Technologies since 1997
