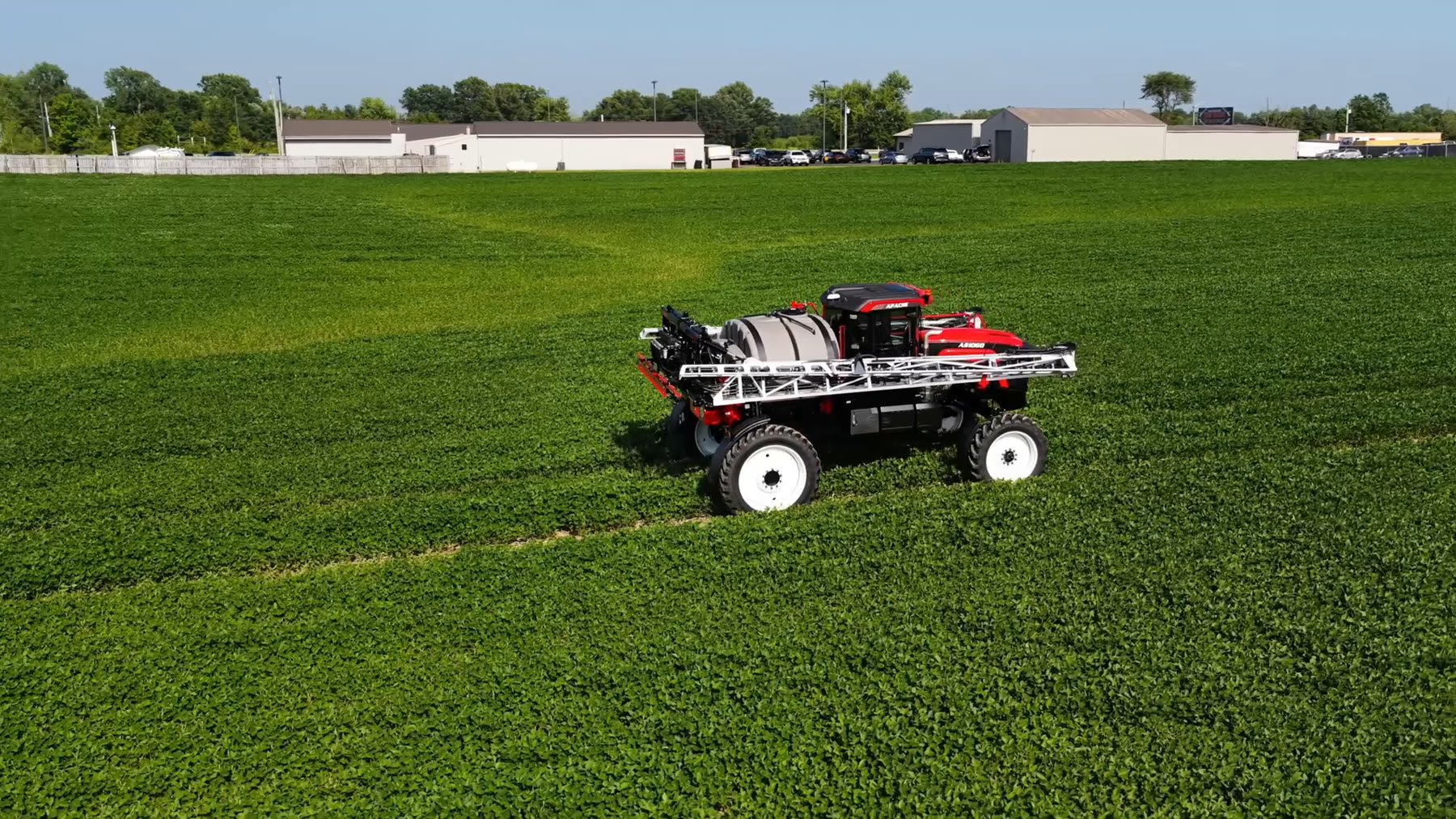

AS1060 Mechanical-drive sprayer

Engine

Cummins B6.7

Power

225 hp

Tank

1,000 gal

Boom

90–132 ft

Weight

20,200 lb

Large enough for higher-rate application, yet light enough to stay out of the ruts. 1,000 gallons, 225 horsepower, and the visibility to work a long day without fatigue, the most-chosen Apache in the field.

Standard features

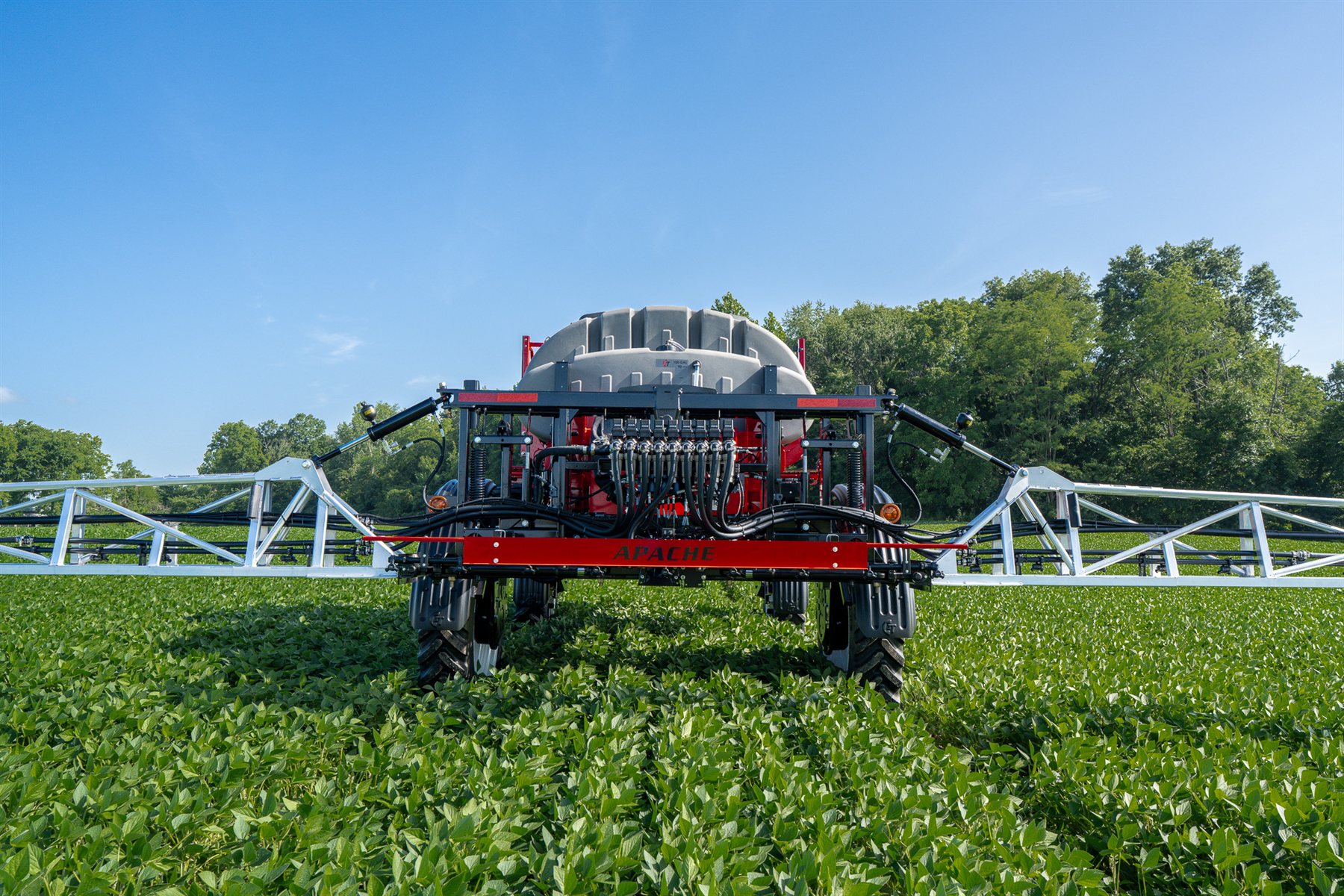

Boom System

Smarter Rack Designcushioned & stableImproved cushioning and stability absorb stress across rough terrain, smoother operation, reduced wear, lower long-term maintenance.Less wear · Smoother Operation

Breakaway Wingshandles field obstaclesWings flex on contact with trees, poles, fence lines, and equipment, then automatically return to position so you keep moving.Auto return · Keeps You Moving

Greaseless Bushingsdramatically less serviceEliminate 27 of 32 grease points across the rack and wings. Dramatically less daily service. More uptime. More acres.27/32 · Grease Points Cut

Boom Recirculationprimed & uniformPrimes the boom before spraying for a uniform pattern. Eliminates product settling, auto mode detection, low-flow alert.Primed · Before You Spray

Performance

Mechanical Drivesince 1997No hydrostatic parasitic loss. Cummins B6.7 through a ZF Powershift transmission delivers 90% driveline efficiency, and best-in-class power-to-ground.90% · Driveline Efficiency

Hydrocone Cabfluid-elastic isolatorsAMC Mecanocaucho "Hydrocone" isolators absorb shock and chassis displacement, delivering a measurably smoother ride over rough ground.50% · Smoother Ride

Load-Sense Steeringvariable-displacement pumpA variable-displacement load-sense piston pump delivers the right hydraulic flow at every speed, reducing steering effort at headlands, hills, and tight corners.20% · Less Steering Effort

Cab & Comfort

Heated & Cooled Seatleather · operator-first cabHeated and cooled leather seat comes standard. Because the cab is where the season is really won, and every hour of comfort is an hour of accuracy.12hr+ · Cab Comfort

Forward Visibilityfront-engine architectureFront-engine, rear-boom layout means an unobstructed forward view down the row, and the boom stays out of the operator's sightline, every pass.360° · Row Visibility

Ergonomic ControlsBosch · Raven · ACTIAClimate control, intuitive joystick, common display, and proven Raven and ACTIA boom controllers. Built around the operator, not the engineer.All day · Operator-First

Tank & Plumbing

HDPE Product Tank1,000 gallonsHigh-density polyethylene product tank. Chemically resistant, contoured for balance, and built for decades of daily rinse cycles. Stainless steel available.1,000 gal · Capacity

100-Gallon Rinse Tankfresh-water cleanDedicated 100-gallon rinse tank for end-of-day cleanout and chemistry switches. Keeps the product tank ready for the next mix.100 gal · Rinse Capacity

Full Cleanout Accessplumbing built for serviceBoom recirculation works with individual nozzle and section control. 100% cleanout access through the plumbing, nothing trapped, nothing settled.100% · Cleanout Access

Ownership

Bumper-to-Bumper2-year warrantyTwo-year full warranty. Five-year limited. The strongest coverage in mechanical-drive sprayers, in writing, from the factory.2/5 yr · Bumper / Limited

Same-Day Parts95% fill rate95% same-day parts fill from Mooresville. When something's needed, it's on its way, not on backorder. Built for the season you're in.95% · Same-Day Fill

Built in Mooresville, INUSA · since 1997Designed and assembled by Equipment Technologies in Mooresville, Indiana. American-made, backed by the people who built it.USA · Made & Backed

Specifications

Figures are from the factory spec sheet. Full AS1060 page at etsprayers.com ↗

Chassis, Suspension & Tires

Weight: 20,200 lbsApproximate dry weight
Axle Width: 120″ fixedOr 120″–160″ hydraulic adjustable (50″ crop clearance only)
Transport W & H: 144″ max
Overall Length: 290″ max
Turning Radius: 20′
Wheel Base: 15′
Front Tires: Michelin 380/80R38Standard
Rear Tires: Michelin 380/90R46Standard
Crop Clearance: 42″ · 50″ optionalOr 50″ optional
Suspension: Independent hydraulicPatented
Brakes: Internal wet discFully enclosed · self-adjusting

Engine & Drivetrain

Engine: Cummins B6.7Performance Series, 225 HP rated
Rated Horsepower: 225 HP
Transmission: ZF Powershift6-speed with lock-up torque converter (up to 2× torque multiplication)
Driveline Efficiency: 90%
PTG Ratio: 10 HP / 1,000 lbsPower-to-ground
Fuel Tank: 90 gal
DEF Tank: 15 galDiesel exhaust fluid

Product & Spray System

Tank Capacity: 1,000 gallonsHDPE · High-density polyethylene
Rinse Tank: 100 gal
Booms: 90′ · 100′ · 120′ · 132′Pommier aluminum

Cab & Coverage

Cab: Heated / Cooled LeatherHydrocone fluid-elastic active isolators
Warranty: 2-Year Bumper-to-Bumper5-year limited warranty
Assembly: Mooresville, INBuilt by Equipment Technologies since 1997

Options

Every Apache is built to order. Your OVA salesman will walk you through the options that fit your operation.

Fence-Row NozzlesBoom · Add-OnAdded nozzles keep fence lines and outer field edges clean. Add to left, right, or both sides of the boom.

3-Inch Product FillFill RateUpgraded 3-inch diameter product fill connection. Fills up faster, turns the tank over quicker.

Hypro® Cleanload™Chem HandlingSelf-contained eductor system for safely and quickly mixing liquid and dry chemicals.

Power MirrorsCabSingle power side mirror attached to the cab, adjustable from the operator seat.

Pommier Aluminum BoomsBoom Upgrade90′, 100′, 120′, or 132′ Pommier aluminum booms for wider-swath operations that still need a light touch.

Hydraulic Adjustable AxleChassis120″–160″ hydraulically adjustable axle width, available with the 50″ crop clearance configuration.
